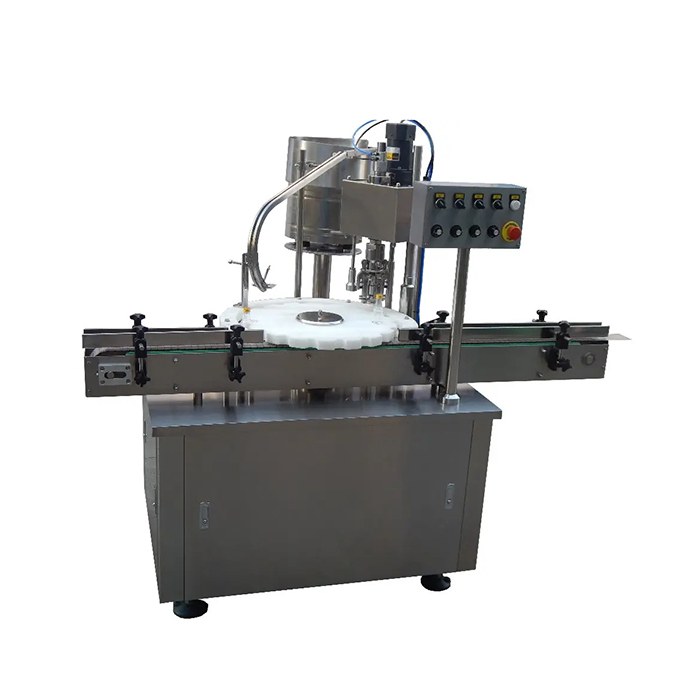

Højhastighedsmælkeflaske Rotary Capping Machine

Højhastighedsmælkeflaske Rotary Capping Machine

Introduktion

---

This automatic capping machine is suitable for round cap, spray/pump tightening, can work with existing filling line, Electrical control movement, strong stability; with positioning devices, standard Capping, easy to operate; wide capping range suitable for different shapes and sizes; resolved the difficult problem on nozzle cap, pump cap, spray pumps, spray gun in hand button capping; lock lid with adjustable speed can be adjusted according to different cap tightness.Widely used in detergent, shampoo, shower gel, hand cleaning gel, laundry detergent and many other daily chemical products

Egenskab

---

1, PLC controlled , integrated cap capping ( automatic cap sorting/cap feeding can be option)

2, Automatisk indgangshætte og flaskeposition og indstilling, justerbar drejningsmomentstyring.

3, Skånsom manipulation, ingen ridser og skader på hætter og containere

4, lette skift, en linje, der er i stand til flere produkter

5, er let forbundet med påfyldningsmaskine og etiketteringsmaskine

6, modulstruktur, manipulere på berøringsskærmen, let vedligeholdelse

Specifikation

---

Navn	Højhastighedsmælkeflaske Rotary Capping Machine
Model	WTPC-200
Ansøgning	Pumpehætte, sprøjtehætte, nålehætte og normal rund hætte
Produktion	1800-2400B / time
Strøm	220V 50Hz 0,7KW
Hætte diameter	20-40mm
Flaskehøjde	80-350mm
Drejende kraft	5-20N.m
Vægt	300 kg
Dimension	2000 * 1100 * 1550mm

Hurtige detaljer

---

Type: Capping Machine
Tilstand: Ny
Anvendelse: Beklædning, drikke, kemisk, råvare, mad, maskiner og hardware, medicinsk, tekstiler, pumpehætte, sprøjtehætte, nålehætte og normal rundhætte
Drevet Type: Elektrisk
Automatisk karakter: Automatisk
Spænding: 220V / 110V
Effekt: 0,75kw, 220V / 110V
Emballagetype: Flasker
Emballagemateriale: Glas, plast
Oprindelsessted: Shanghai, Kina (fastlandet)
Mærkenavn: NPACK
Dimension (L * B * H): 2000 * 1100 * 1550mm
Vægt: 300 kg, 300 kg
Certificering: ISO9001
Service leveret efter salg: Ingeniører til rådighed for serviceudstyr i udlandet
Navn: Højhastighedsmælkeflaske Rotary Capping Machine
Style: High Speed Milk Bottle Rotary Capping Machine
Fungere:
Højhastighedsmælkeflaske Rotary Capping Machine
Hætte Diameter: 20-40mm
Flaskehøjde: 80-350mm
Drejekraft: 5-20N.m
Dimension: 2000 * 1100 * 1550mm

---

• Automatic press is set on the plug, gland, out of the bottle in an ideal automation machinery, can easily with other equipment linkage, realize full automation .
• Simple operation,capping automatically PLC control,no bottle no capping, with high accuracy.
• Magnetic torque screw capping,never in-gage,cap unscrewing torque adjustable.It does not hurt bottles and caps.
• Automatic capping machine is mainly suitable for pharmaceutical, medical, food, chemical and other industries filling after tamponade, is a kind of, stability, strong commonality of equipment.
