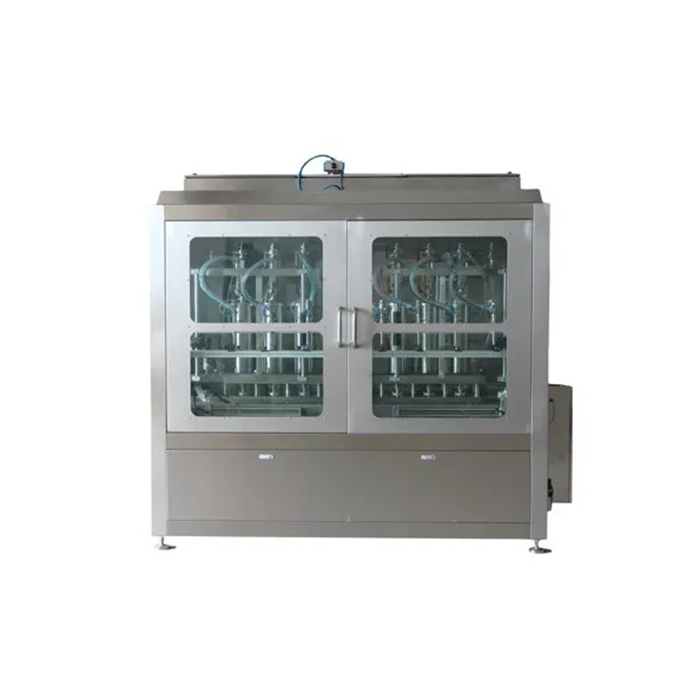

Automatic PET Bottle Filling Machine / Bottling Line / Project

tre-i-en maskine til PET-flaske integrerer funktionen af skylning, påfyldning og afdækning sammen. Baseret på avanceret teknologi i udlandet og designet efter vandpåfyldningskrav

Hovedtræk

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Mængde af arbejdsstilling	Skylning 32, fyldning 32, afdækning 10
Produktionskapacitet	15000BPH (500 ml)
Tryk på luftkilden	0,7 MPa
Luftforbrug	1.2m3 / min
Skylning af vandtryk	0.2-0.25Mpa
Skyllevandskapacitet	2.5T / H
Hovedmotorkraft	3.2kW
Total styrke	4.8kw
Dimension	4250X2150X2200mm (L × B × H)
vægt	5200 kg

Vi leverer også det komplette automatiske flaskeanlæg med rent vand

Det inkluderer 4 hoveddele:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Hovedbeskrivelsen af den komplette linje:

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5. We provide the engineers for customer installation, training in customer's factory.

Modeller og hastighedsliste

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Vask hænder	8	14	16	24	32
Påfyldningsventiler	8	12	16	24	32
Capping hænder	3	5	5	8	10
Egnede PET / glasflasker (150 ml til 2000 ml)
Kapacitet (Speed) Baser på 500 ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Leverandør af elektriske komponenter mærker

Hovedkomposition	Beskrivelse leverandør
PLC	Mitsubishi (Japan), Siemens (Tyskland)
Berøringsskærm	Weinview (Taiwan)
Frekvensomformer	Mitsubishi (Japan), Siemens (Tyskland)
Luftkontakt	Schneider (Frankrig)
Breaker	Siemens (Tyskland)
Kontaktor	Siemens (Tyskland)
Fotoelektrisk switch	Omron (Japan)

Hurtige detaljer

Type: Påfyldningsmaskine
Stand: Ny
Anvendelse: Drik, kemisk, medicinsk
Emballagetype: Flasker
Emballage: plast
Automatisk karakter: Automatisk
Drevet Type: Elektrisk
Spænding: 380V / 220V
Effekt: 4,8KW
Oprindelsessted: Shanghai, Kina (fastlandet)
Mærkenavn: VKPAK
Dimension (L * B * H): 4250X2150X2200mm
Vægt: 5200KGS
Certificering: CE, ISO, SGS
Service leveret efter salg: Ingeniører til rådighed for serviceudstyr i udlandet
Fabrik: LINKS MASKINERI
Flaskestørrelse: 150 ml til 2000 ml
Flaskehalsdiameter: 15-55 mm
Flaskemateriale: plast / glas
Hastighed (base på 500 ml flaske): 15000B / H
Kontrolsystem: PLC-berøringsskærm (MITSUBISHI JAPAN)
Dæksel: Skrue / pres på hætten
Cap-elevator: Have
Påfyldning af væske: mineral / rent vand
