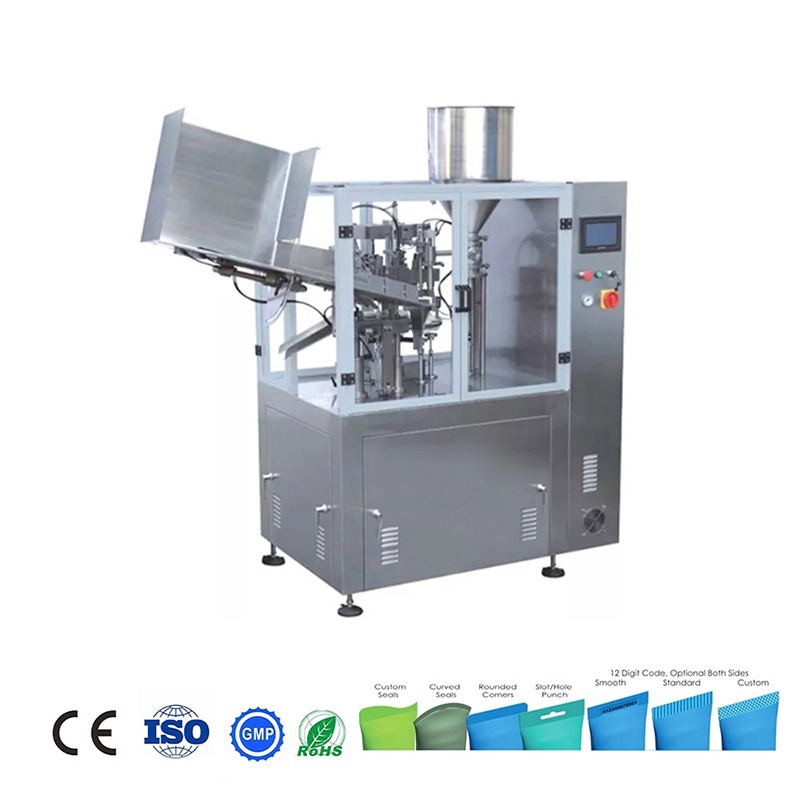

Cream Tube Filling Packing Machine Producenter

Produkt beskrivelse:

---

Denne maskine er højt teknisk udstyr, der med succes er udviklet og designet ved at introducere i avanceret oversøisk teknologi og integrere GMP-krav, med funktioner i fair struktur, fuld funktion, nem betjening, nøjagtig påfyldning, stabil drift og lav støj. Det vedtages med PLC-controller, der automatisk fungerer fra væskeformigt eller højhastighedsmaterialeudfyldning indtil udskrivning af batchnummer (inkluderer fremstillingsdato), det er et ideelt udstyr til ALU-rør, plastrør og flere rørfyldning og forsegling i kosmetik, apotek, fødevarer, klæbemidler osv. industrier, overholder GMP-standarden.

Funktioner:

---

1. Betjeningsskærm i høj kvalitet med LCD-display PLC og knapper, let betjening og mere humanisering Ved trinvis justering af hastighed, parameterindstilling, out put count, trykindeks og fejlvisning.
2. Automatisk udførelse af rørforsyning, fotoelektronregister, inert gaspåfyldning (valgfrit), materialefyldning og tætning, batchnummerudskrivning, slutproduktproduktion.
3. Fotoelektronregister med høj præcision reducerede det kromatiske afvigelsesomfang.
4. Justeringsdele udvendigt i position, position digitalt display, praktisk og nøjagtig justering (egnet til forskellige produktionsprodukter).
5. Mekanisk, fotoelektronisk, elektrisk, pneumatisk integrerende kontrol, når ingen rør uden påfyldningsfunktion; Venter på, om rørfejlposition eller tryk er for lavt, automatisk stopmaskine, hvis åbne beskyttelsesdøren.

Model	GF-400 A	GF-400 B
Rørmateriale	Metalrør, ALU-rør	Plastrør, sammensat rør
Rørdiameter	10-42 mm	10-60 mm
Rørlængde	50-250 (tilpasses)	50-250 (tilpasses)
Påfyldningsvolumen	5-500ml / gren (indstillelig)	5-800ml / gren (indstillelig)
Påfyldningsnøjagtighed	≤ ± 1%	≤ ± 1%
Hastighed	3-10 r / min	2,5-7 r / min
Produktkapacitet	30-60 pc / min	30-60 pc / min
Lufttilførsel	0.55-0.65mpa	0.55-0.65mpa
Motoreffekt	2kw (380V / 220V 50Hz)	2kw (380V / 220V 50Hz)
Varmeforseglingskraft	3kW	3kW
Overordnet dimension	2620 × 1020 × 1980 mm	2620 × 1020 × 1980 mm
Maskinens vægt	1100 kg	1100 kg

Grundlæggende info

---

Anvendelse: Indsæt
Formning af arter: Flaskeformning
Drevet Type: Elektrisk
Emballage: Soft Tube
Motoreffekt: 2kw (380V / 220V 50Hz)
Samlet dimension: 2620 × 1020 × 1980mm
Trademark: VKPAK
Oprindelse: Shanghai, Kina
Automatisk karakter: Automatisk
Type: Påfyldnings- og tætningsmaskine
Formningsfunktion: Udfyldning
Materiale Type: Indsæt
Produktkapacitet: 30-60 pc / min
Varmeforseglingseffekt: 3kw
Maskinens vægt: 1100 kg
Specifikation: CE

---

A cream tube filling packing machine is a type of packaging machinery designed for filling and packaging various types of creams, gels, pastes, and other similar products into tubes. This type of machine typically consists of several components, including a tube feeder, filling unit, sealing unit, and cutting unit. The overall production process is automated, which ensures the accuracy and consistency of the fill, as well as the speed of production.

The specific features and specifications of a cream tube filling packing machine may vary depending on the manufacturer and the intended application, but some common features include:

High precision: The filling system is designed to be accurate, with the ability to fill the exact amount of product specified, with minimal waste.

Versatility: The machine can be used for filling and packaging a wide range of products, including creams, gels, pastes, and other similar products.

Hygiene: The machine is designed to meet hygiene standards, with components made from food-grade stainless steel and other non-corrosive materials. The filling system is also designed to prevent contamination, ensuring the safety and quality of the product.

Easy to operate: The machine is typically user-friendly, with intuitive controls and easy to follow instructions. The system is also designed to be easy to maintain, with minimal downtime required for cleaning and servicing.

High production rates: A cream tube filling packing machine is designed to work at high production rates, with the capability of filling and packaging hundreds or even thousands of tubes per hour.

Overall, a cream tube filling packing machine is an efficient and reliable solution for filling and packaging various types of creams and gels into tubes. It is a popular choice for manufacturers who need to package products for retail or commercial use, with the ability to meet high standards of accuracy, consistency, and hygiene.
